Series 432

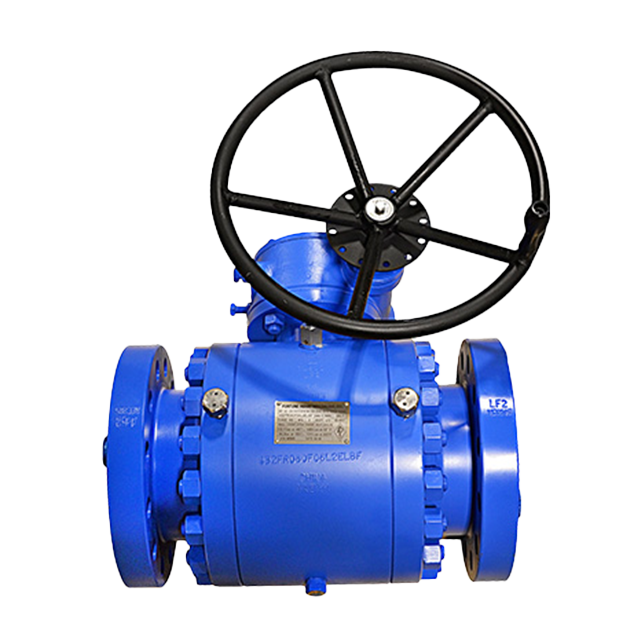

Fusion Series 432 Trunnion Mounted API 6D Ball Valve

The Fusion Series 422 Trunnion Mounted API 6D Ball Valve is designed to be of the highest quality at a very economical price. These double block and bleed valves are two-piece cast steel construction and feature in-line emergency seat sealant injection.

Download

Basic Features

  • 2" - 24" Sizes
  • 150 - 2500 ASME Classes
  • Standard Self-Relieving Seat Design and Optional DPE or Hybrid seats
  • Standard Three-Piece Forged Construction
  • Full Stainless Steel Optional
  • Double Block and Bleed
  • AED Compliant HNBR O-rings
  • Devlon Seats Standard (other seat materials available on request)
  • Inconel Seat Springs
  • Antistatic Device
  • Locking Device on Gear Operator
  • Anti-Blowout Stem Design
  • ISO 5211 Direct Mount Top Works
  • Fire-Safe Certified to API 607
  • API 6D Compliant and Marked
  • CSA Z245.15 Compliant and Marked
  • API 608 Compliant
  • ASME B16.34

Specifications

ITEM PART STAINLESS STEEL CARBON STEEL LOW TEMP CARBON STEEL
1 BODY ASTM A182 F316 ASTM A350 LF2 ASTM A105
2 ADAPTER ASTM A182 F316 ASTM A350 LF2 ASTM A105
3 BALL ASTM A182 F316/F6a ASTM A350 LF2+ENP ASTM A350 LF2+ENP
3* BALL (SS TRIM) ASTM A182 F316/F6a ASTM A182 F316/F6a ASTM A182 F316/F6a
4 SEAT HOLDER ASTM A182 F316/F6a ASTM A350 LF2+ENP/4140+ENP ASTM A350 LF2+ENP/4140+ENP
4* SEAT HOLDER (SS TRIM) ASTM A182 F316/F6a ASTM A182 F316/F6a ASTM A182 F316/F6a
5 SEAT INSERT DEVLON DEVLON DEVLON
6 STEM 17-4PH 4140/42CrMo+ENP 4140/42CrMo+ENP
6* STEM (SS TRIM) 17-4PH 17-4PH 17-4PH
