Marine - Engine Control Cable

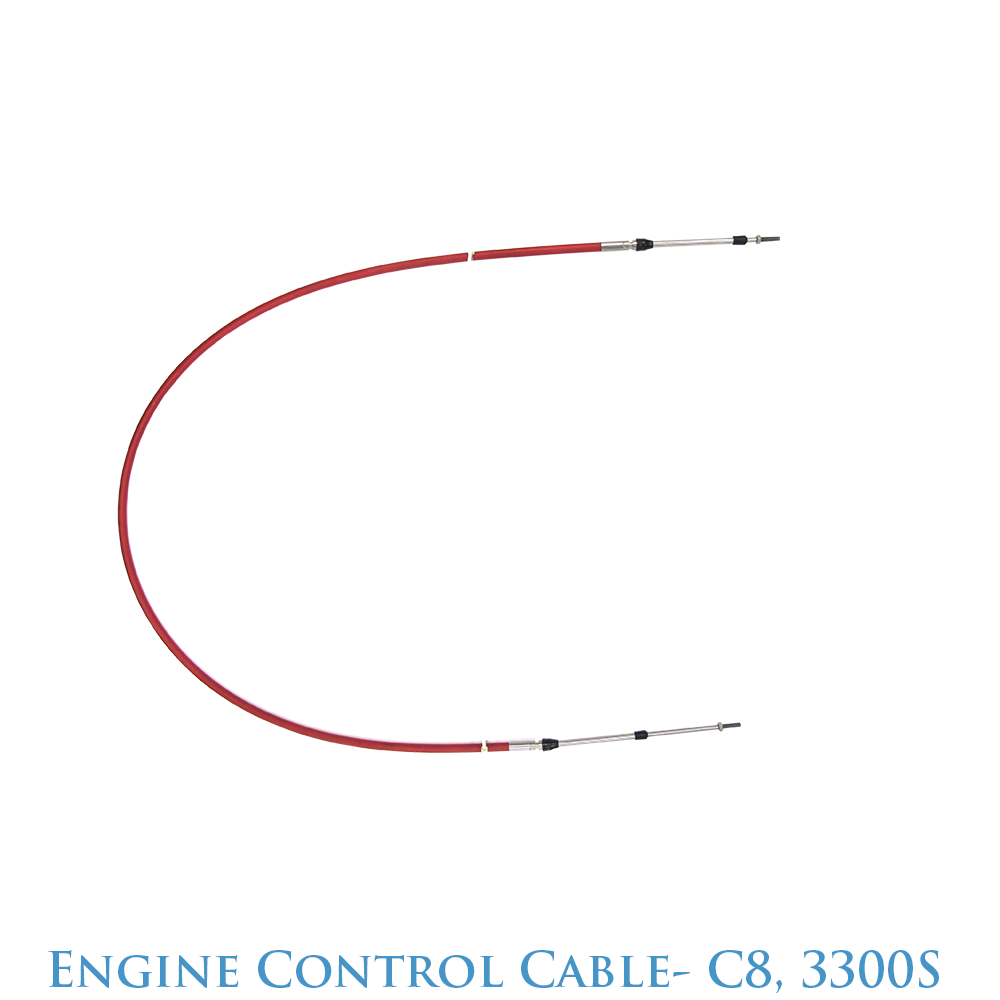

Engine Control Cable For C8, 3300S Use for inboard, sterndrive and outboard engines cable

  • Push pull cable.
  • The outer is long lay conduit,OD is 8.7 mm,18 wires, and coating material is HDPE in red.
  • Core wire OD is 3 mm, material is galvanize steel with PA6 coating.
  • Cable end fitting material is stainless steel for anti-corrosion.
  • End thread SPEC is 3/16-32 UNF and protected by PVC protector.
  • The core cable applied with sufficient lubricant for good efficiency.
  • Various lengths are available from 5FT to 30FT.
  • For all inboard engines. For routboard engines Yamaha, Suzuki, Tohatsu, Honda. For sterndrive engines Volvo.

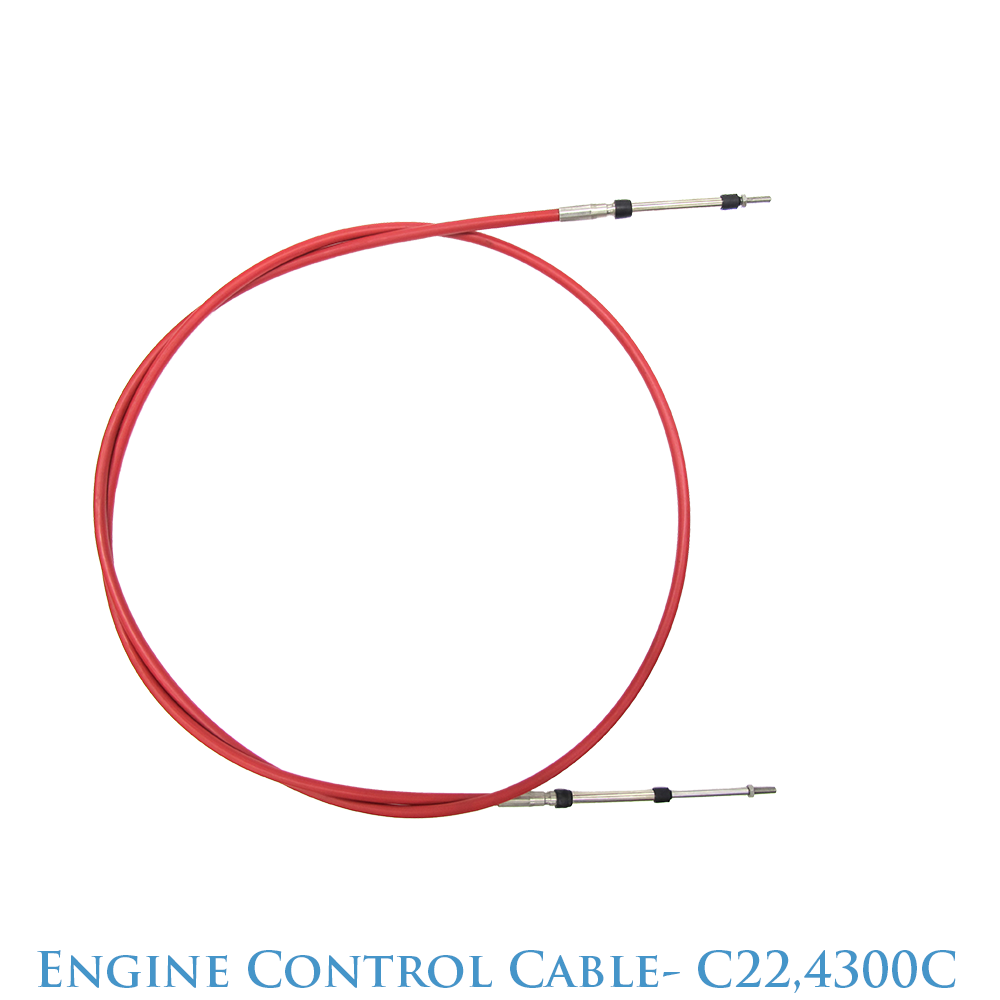

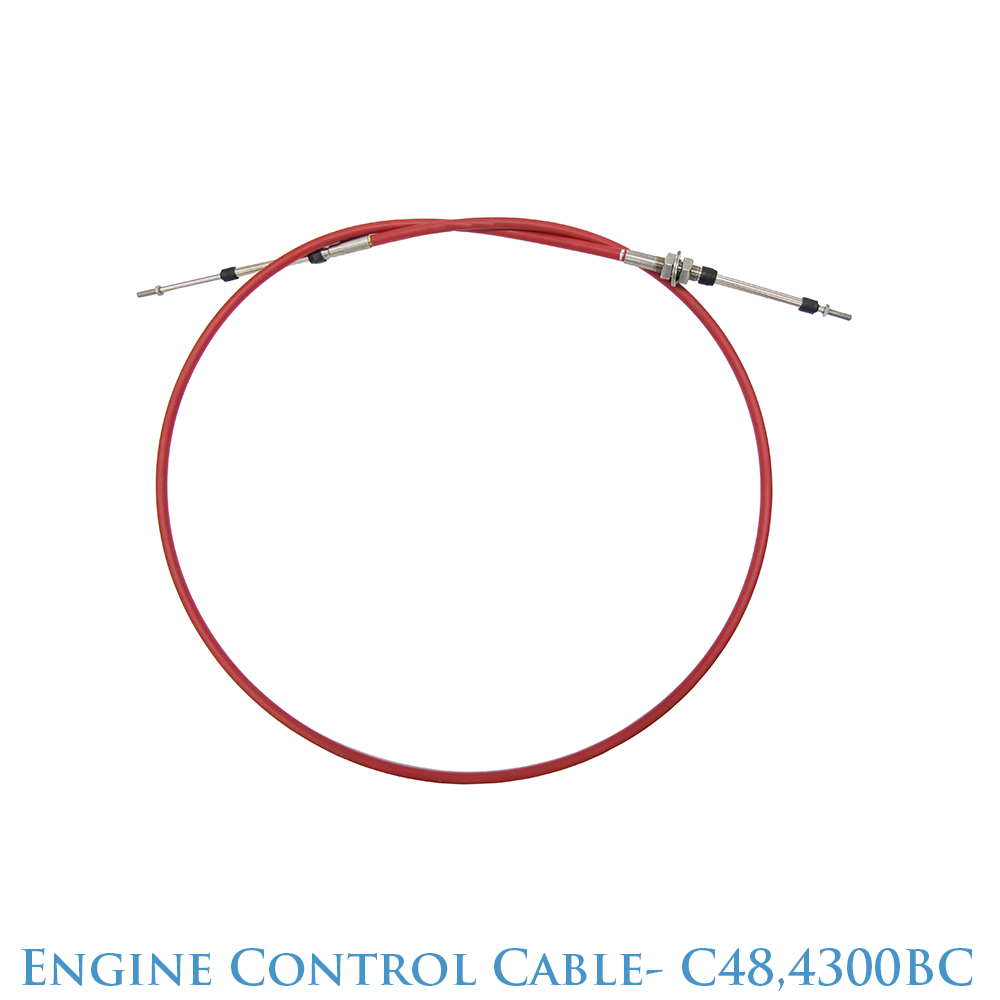

Engine Control Cable For C22,4300C / C48,4300BC Use for inboard, sterndrive and outboard engines cable

  • Push pull cable.
  • The outer is long lay conduit,OD is 11 mm,19 wires, and coating material is HDPE in red.
  • Core wire OD is 4.3 mm, material is galvanize steel with PA6 coating.
  • Cable end fitting material is stainless steel and brass plating with Ni for anti-corrosion.
  • End thread SPEC is 1/4-28UNF and protected by PVC protector.
  • The core cable applied with sufficient lubricant for good efficiency.
  • Various lengths are available from 5FT to 30FT.

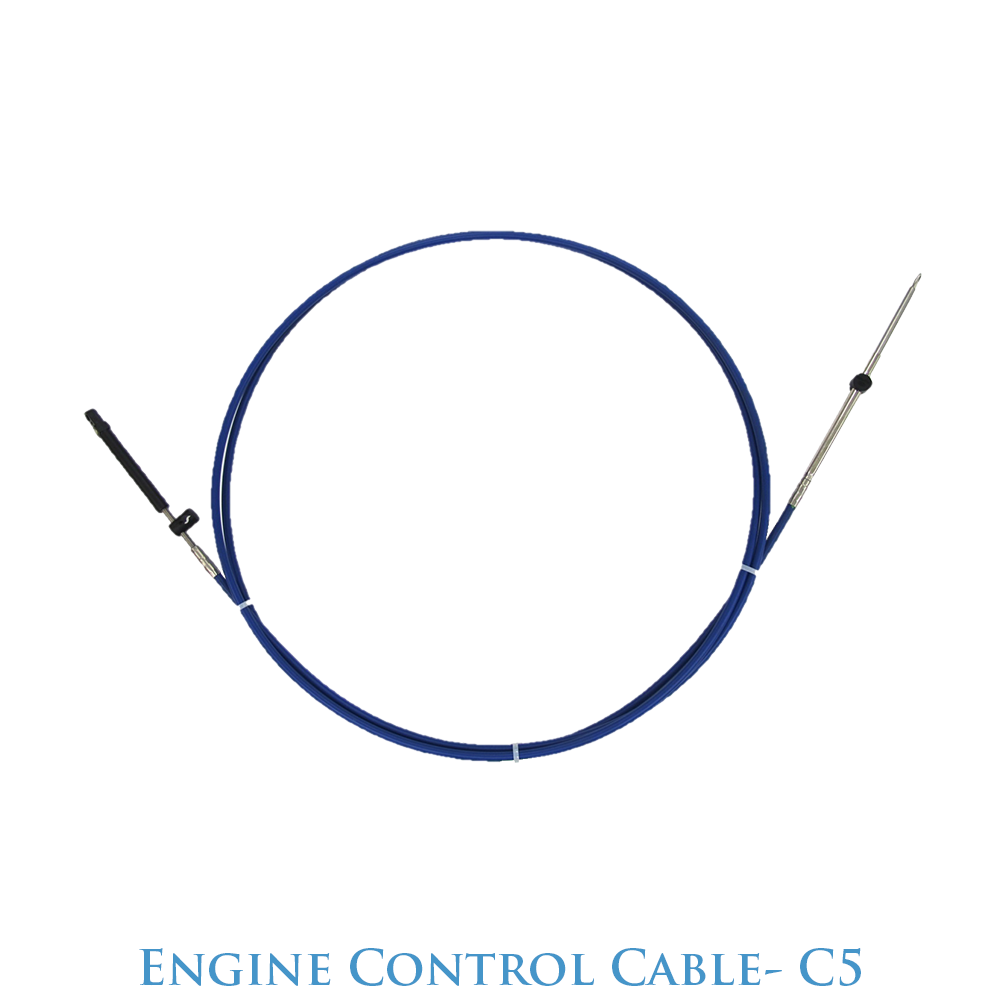

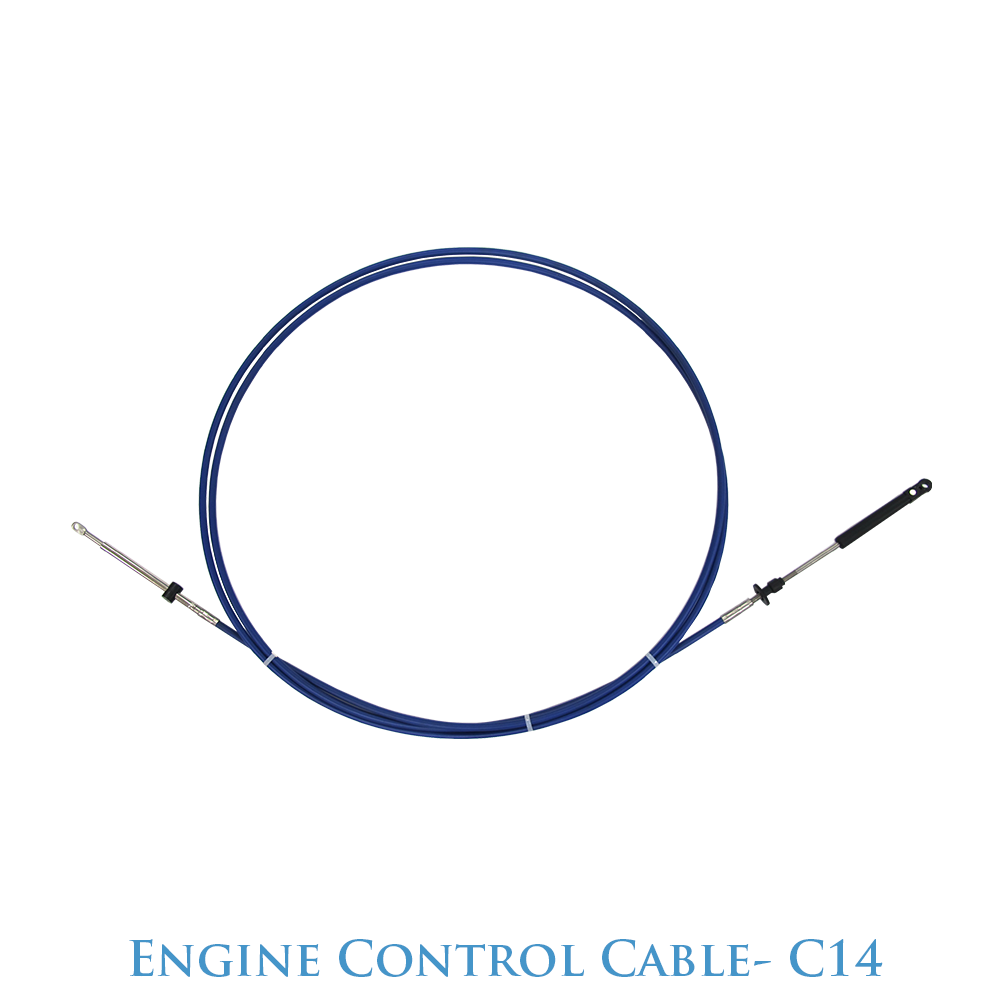

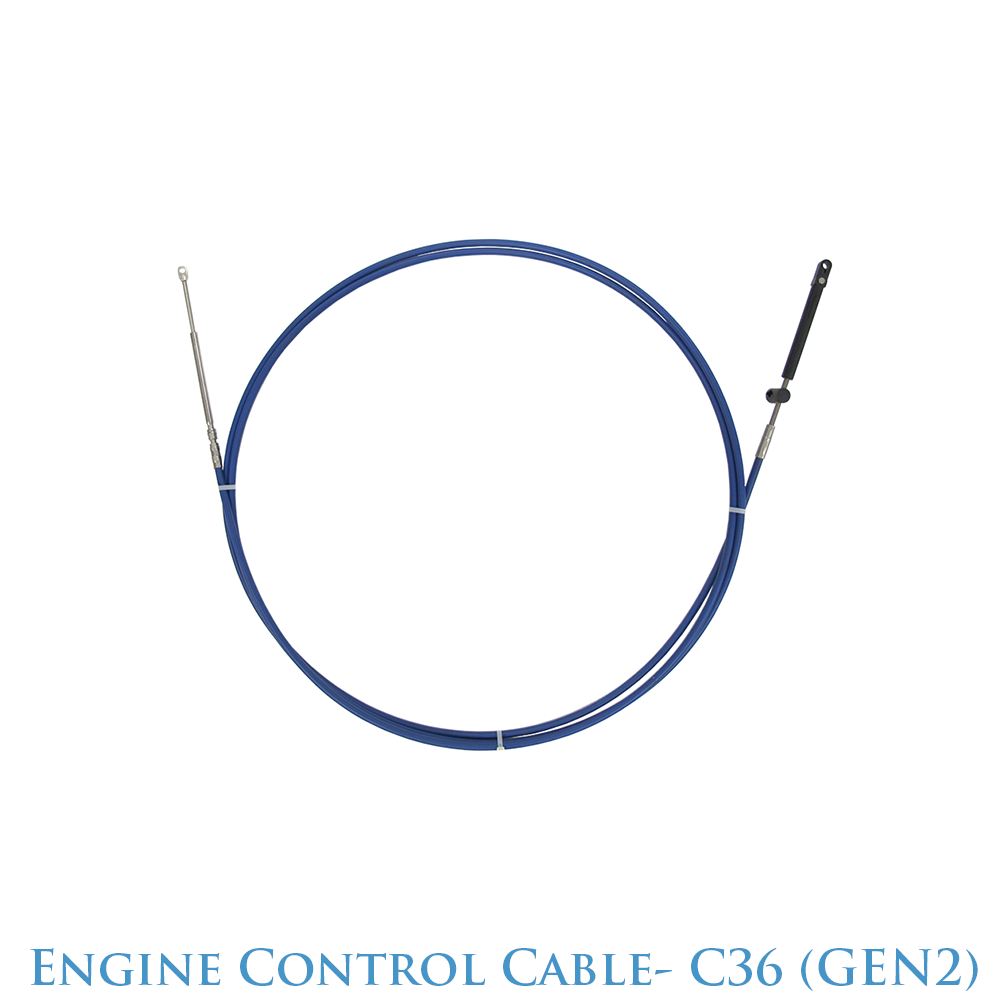

Engine Control Cable For C5 / C14 / C36(GEN2) Use for inboard, sterndrive and outboard engines cable

  • Push pull cable.
  • The outer is long lay conduit,OD is 8.3 mm,23 wires, and coating material is PP in blue.
  • Core wire OD is 3.2 mm, material is SUS304 steel with PBT coating.
  • Cable end fitting material is stainless steel and brass plating with Ni for anti-corrosion.
  • The material of plastic component is PA66.
  • The core cable applied with sufficient lubricant for good efficiency.
  • Various lengths are available from 5FT to 30FT.
